Free desktop software

End Grain Designer (Preview)

Free desktop software by Millers Church Workshop for designing end-grain cutting boards, generating printable build sheets, and exporting your designs.

  • Unlimited board designs
  • Polygon and repeat tools
  • Manufacturing planner
  • PDF build sheets
  • PNG and SVG export
  • Sample projects included
  • Runs on Windows (64-bit)
Download End Grain Designer v0.1.0 Preview See it in action here

This is an unsigned preview build. Windows SmartScreen may display an "Unknown Publisher" warning the first time you run it.

Free 3D print

80mm Spindle Dust Boot for 4" Dust Collection

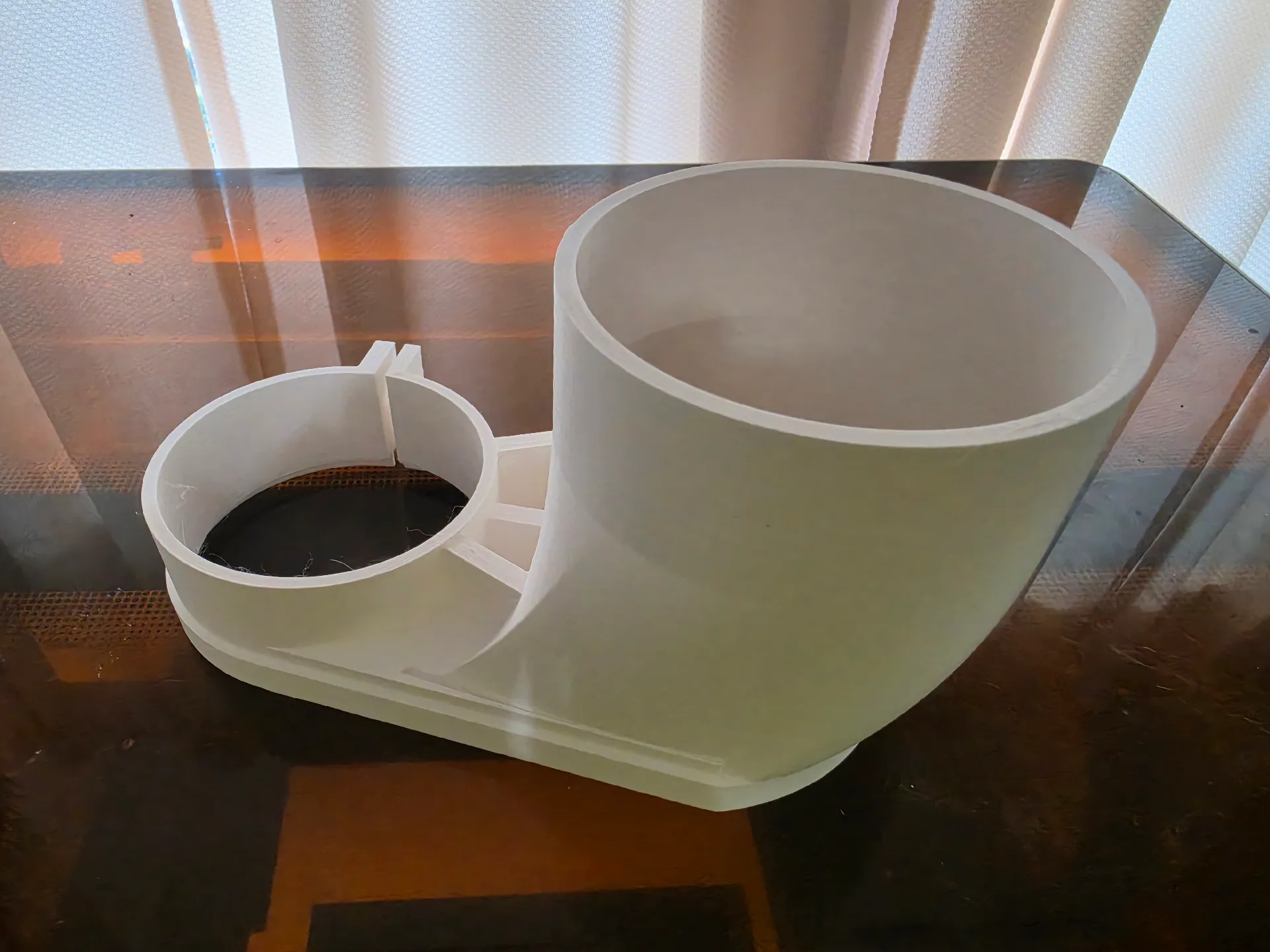

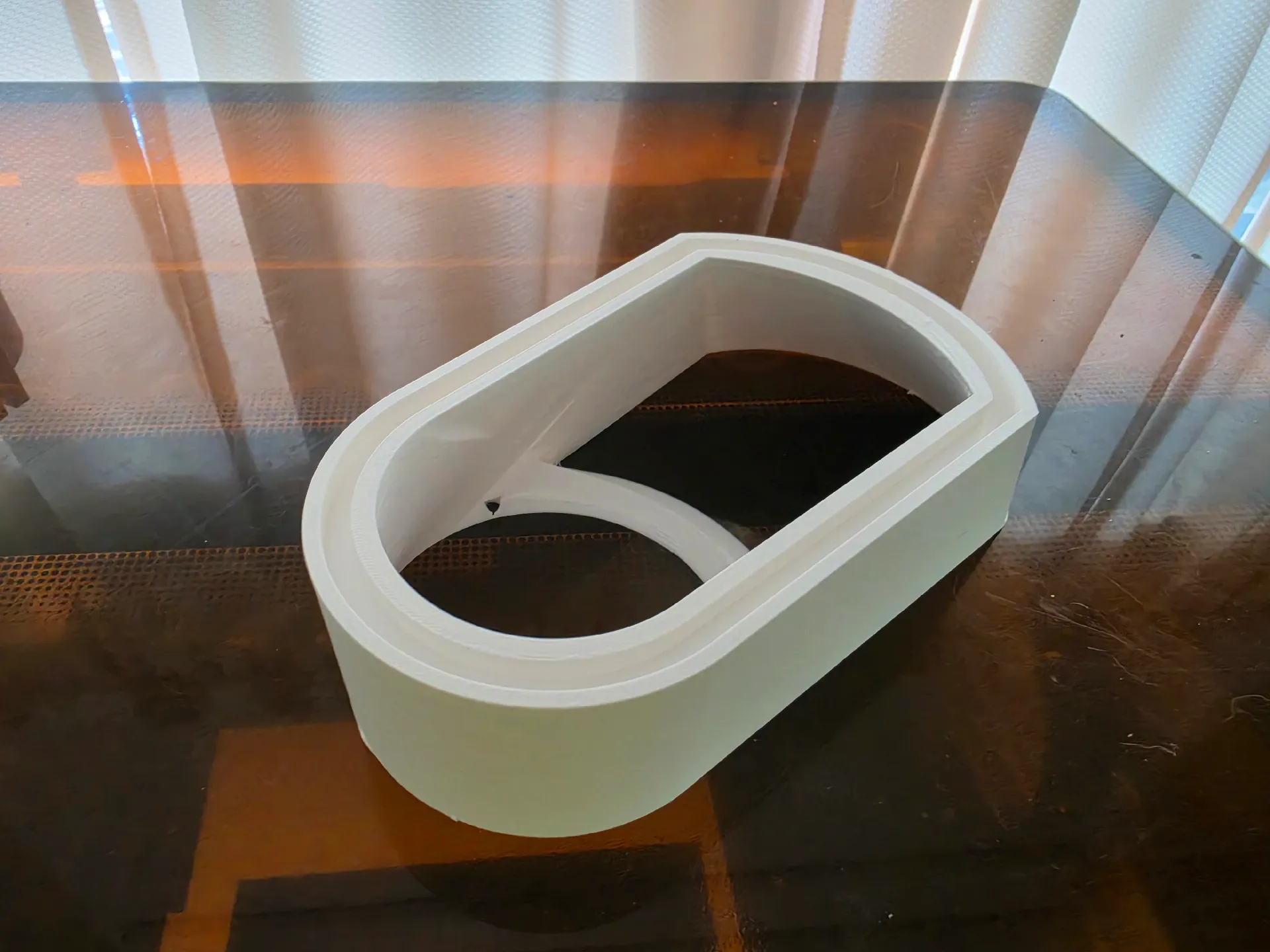

3D-printed dust boot for an 80mm CNC spindle with a 4-inch dust collection port Removable foot for the 3D-printed CNC dust boot

I had a small dust boot for my Onefinity CNC with an 80mm spindle, but after upgrading to a dust collector with a 4" hose, I wanted to avoid necking the airflow down to about 2". So I drew up this boot with a full 4" connection to make better use of the collector's suction.

It has been through a little tweaking already, and there may be more revisions down the road. The removable foot is held on with 4.5mm × 4.5mm N50 magnets.

  • Designed for an 80mm spindle
  • Full 4" dust-collection connection
  • Removable magnetic brush foot
  • Uses 4.5mm × 4.5mm N50 magnets
  • Brush: McMaster-Carr Easy-Cut Strip Brush, 7/32" wide × 3/16" backing
  • Brush material is available in 1", 2", and 3" heights

I print mine on a Sovol SV06 Plus ACE.

Get the Dust Boot Free on Printables

Project Plans

Future home for printable plans, measurements, material lists, and project notes.
